Keep the Power Flowing

                       Keep the Vehicle Running

  • Test the no-load energy, the on-load condition, the internal resistance of the battery and the charging system conditions of 6V and 12V lead-acid battery
  • ​32-bit high-end micro control unit for computation operation to tell automatically the different voltage of the battery at the same time and the charging status
  • ​Available for most of the lead-acid storage battery, electric vehicle battery, UPS battery, solar energy storage battery, automotive battery , marine battery
  • ​Over voltage input protection
  • ​Reverse polarity protection
  • ​Poor contact and over temperature prompt
  • Test 6V and 12V Lead-acid Storage Battery
  • ​Load test current less than 20A
  • ​Battery capacity detection range 5Ah  to 80Ah
  • ​Internal resistance range of battery 1.00mΩ to 99.99mΩ
  • ​Voltage display accuracy of digital meter ＜ ± (1.0%+2 digits) (full scale), maximum voltage DC 19.99V
  • ​Battery capacity presetting : continuously adjustable in the range of 5-80 Ah, with 5Ah increment
  • ​Dimension : 3.8 * 2.0 *7.5 inch ( 9.5 * 5.0 * 19 cm )
  • ​Weight   :  1.9 lb ( 860 g )
SPECIFICATION

Battery Tester

-DI-205C with Printer & Ah input

-DI-215A with Ah input Quick Test

-DI-215C with Printer

-DI-216 12V LCD

-DI-217 12V plus LED

Deep-Cycle Battery Tester

​-DI-225 5Ah-80Ah

​-DI-226 40Ah-200Ah

Lead Acid Battery Tester

-​DI- 226A 3 in 1

Brake Fluid Tester

-DI-230 LED Indicator

-DI-230B  LCD Indicator

-DI-230F Boiling Point Tester

Electrical Circuit Tester

-DI-150 Cordless Circuit Tester

-DI-222 Automotive Tester

-DI-223 Multi-function 4 in 1

-DI-250 Short & Open Finder

AC Manifold and Leakage Detector

-DI-517 Manifold Pressure Tester

​-DI-575 Leak Detector

​Digital Tire Inflator With Gauge

-DI-401 Tire Pressure and Tread


FEATURE

4-wire internal resistance test

Battery Load Tester (for 5 to 80 AH)

over voltage input protection

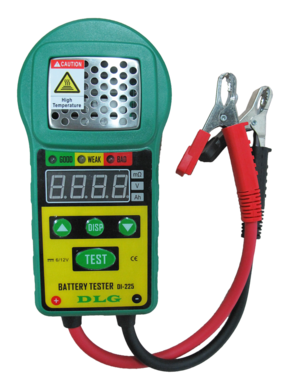

DI-225
