Keep the Power Flowing

                       Keep the Vehicle Running

  • With printer for better result reading.
  • ​Rich parameters measured and displayed for battery diagnose.
  • Easily read out conclusion of battery condition good/OK/ pay attention/ replace  as suggestion.
  • Overload protection keeps operator always safe.
  • Loose lead detection, reverse polarity protection, unit conversion CCA/ IEC/ EN/ DIN.

CCA Value Setting

(12V/24V)

SPECIFICATION

Battery Tester

-DI-205C with Printer & Ah input

-DI-215A with Ah input Quick Test

-DI-215C with Printer

-DI-216 12V LCD

-DI-217 12V plus LED

Deep-Cycle Battery Tester

​-DI-225 5Ah-80Ah

​-DI-226 40Ah-200Ah

Lead Acid Battery Tester

-​DI- 226A 3 in 1

Brake Fluid Tester

-DI-230 LED Indicator

-DI-230B  LCD Indicator

-DI-230F Boiling Point Tester

Electrical Circuit Tester

-DI-150 Cordless Circuit Tester

-DI-222 Automotive Tester

-DI-223 Multi-function 4 in 1

-DI-250 Short & Open Finder

AC Manifold and Leakage Detector

-DI-517 Manifold Pressure Tester

​-DI-575 Leak Detector

​Digital Tire Inflator With Gauge

-DI-401 Tire Pressure and Tread


 Automotive Battery Analyzer

FEATURE

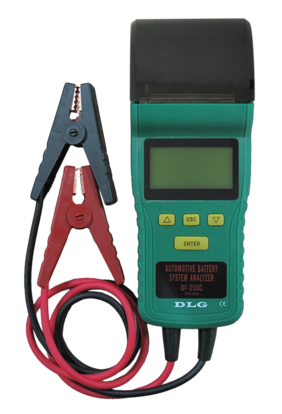

 Automotive Battery Analyzer  With Printer (12V / 24V)

  • CCA Range                                                            100-1700
  • IEC Range                                                               100-1000
  • EN  Range                                                                100-1700
  • DIN Range                                                              100-1000
  • JIS Range                                                                  Reference table in manual
  • Displays Battery Internal Resistance     Display ohms
  • Displays Battery Voltage                               Display volts
  • Displays Battery Condition                          good/OK/pay attention/replace
  • Test 12V and 24V Battery
  • Engine Activation Test
  • Charging System Test
  • ​Maximum Load Test
  • Battery Recharge Indicator
  • Reverse Polarity Protection
  • ​Detects and Displays Bad Cell
  • Loose Lead Detection
  • Internal Unit Conversion EN, EIC, DIN
  • Overload Protection of Input Voltage​
  • Dimension                                                              7*3.5*1.3 inch  (180*90*32mm)
  • Weight                                                                      400g

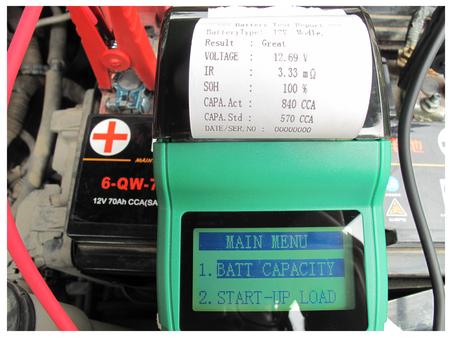

Printed Readings including ​Status / Voltage / IR / CCA

Durable Carrying case

FEATURE

Battery Capacity Testing Result

DI-215A

DI-215C
