Keep the Power Flowing

                       Keep the Vehicle Running

  • Earth Resistance                      0.01Ω-1000Ω
  • Min. Resolution                        0.001Ω
  • Configurable Alarm Value of Resistance    0-199Ω
  • Memory                                   99 sets
  • USB  Interface
  • Conductor Size                         Φ2.2*1.3 inch (Φ55*32mm)
  • LCD Size                                  1.1*1.8 inch (28*46mm)
  • Dimension                                11.2*3.5*2.4 inch(285*90*60mm)
  • Weight                                    1250g
  • 55*32mm jaw size for larger ground rods
  • Autoranging ground resistance measurements from 0.01Ohm to 1000Ohm with 0.001Ohm resolution
  • Configurable alarm value in resistance to support your measurement
  • Ergonomic mold, full rubber coating for slip proof

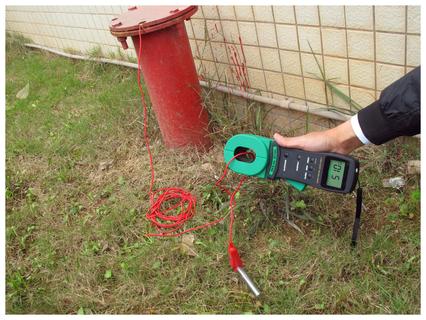

  • Simplifies ground resistance measurements on multiple point ground systems
  • Verification resistor confirm accuracy of meter
  • Datalogging with 99 data points

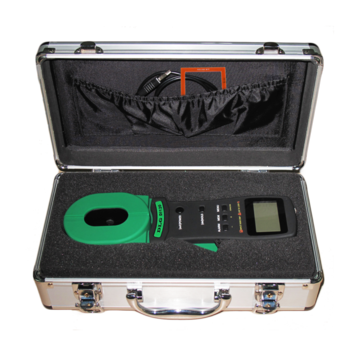

  • Complete with heavy duty case and verification resistor

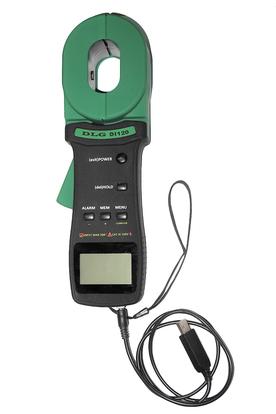

Clamp on Ground Resistance Tester With USB

-DI-120 Basis Version​​

-DI-120A Plus Current Leakage    Test

-DI-120B Plus True RMS

  Crrent Leakage Test

Digital Insulation Resistance Tester

​-DI-301  For 250/500/1000V

​-DI-302  For 500/1000/2500V

​-DI-303 For 15/50/100V

Phase Rotation Tester

-​DI-PT01 Non-contact Phase Rotation Tester

-​DI-PT03 Phase Rotation Tester​​

DI-120

FEATURE

USB CONNECTION FOR DATA DOWNLOADING

SPECIFICATION

Clamp-on Ground Resistance Tester With USB
