Keep the Power Flowing

                       Keep the Vehicle Running

SPECIFICATION

• Test 6V and 12V Lead-acid Storage Battery

• Load test current less than 80A

• Battery capacity detection range 40Ah (300CCA) to 200Ah (1000CCA)

• Internal resistance range of battery 1.00mΩ to 99.99mΩ

• Voltage display accuracy of digital meter ＜ ± (1.0%+2 digits) (full scale), maximum voltage DC 19.99V

• ​Battery capacity presetting : continuously adjustable in the range of 40-200 Ah, with 5Ah increment
• Dimension : 4.5 * 2.8 *8 inch
• Weight   :  2 lb (900g)

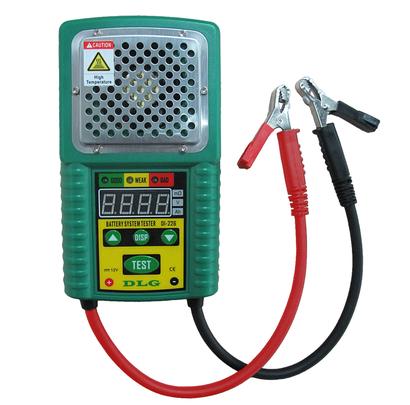

DI-226

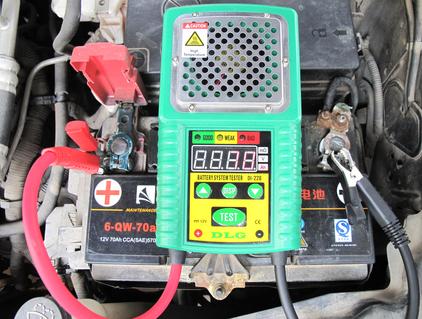

• ​Test the no-load energy, the on-load condition, the internal resistance of the battery and the charging system conditions of 6V and 12V lead-acid battery
• 32-bit high-end micro control unit for computation operation to tell automatically the different voltage of the battery at the same time and the charging status

• Available for most of the lead-acid storage battery, electric vehicle battery, UPS battery, solar energy storage battery, automotive battery , marine battery
• Over voltage input protection

• Reverse polarity protection

• Poor contact and over temperature prompt


 Battery Load Tester

FEATURE
