Keep the Power Flowing

                       Keep the Vehicle Running

  • ​Four main test result indicate the status of the battery and electrical system of the vehicle: Battery Capacity(Voltage, CCA, Internal Resistance, SOH) / Start-up Load / Maximum Work Load / Charging System .
  • ​Full test result printing out with date and time shown in the thermal paper.
  • English and Spanish interface and printing out reading.
  • Available for all 12V and 24V starting lead-acid battery, great compatible with regular flooded, AGM flat plate, AGM spiral and gel batteries, and cover all battery rating Standards - CCA, JIS, DIN, IEC, EN standards.
  • Reverse connecting protection and overload voltage protection secure user and avoid any damage of the battery or electrical system of vehicle.
  • ​​Date/Time will be auto-updated in printing screen with 3V 2032 coin battery installed. (coin battery not included)

 Automotive Battery Analyzer

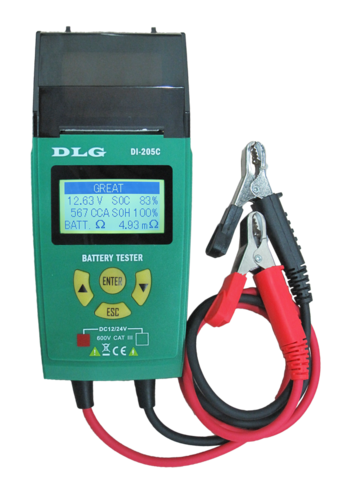

 Automotive Battery Analyzer  With Printer (12V / 24V)

Durable Carrying Case

English

  • CCA Range                                                                                 100-1700
  • IEC Range                                                                                   100-1000
  • EN  Range                                                                                   100-1700
  • DIN Range                                                                                  100-1000
  • JIS Range                                                                                     Reference table in manual
  • Displays Battery Internal Resistance                         Display ohms
  • Displays Battery Voltage                                                   Display volts
  • Displays Battery Condition                                              good/OK/pay attention/replace
  • Test 12V and 24V Battery
  • Engine Start-up Test
  • Charging System Test
  • ​Maximum Load Test
  • Battery Recharge Indicator
  • Reverse Polarity Protection
  • ​Detects and Displays Bad Cell
  • Loose Lead Detection
  • Internal Unit Conversion EN, EIC, DIN
  • Overload Protection of Input Voltage​
  • Dimension                                                                                   8.3*3.7*2.2 inch  (210*93*55mm)
  • Weight                                                                                           1.2lb (500g)

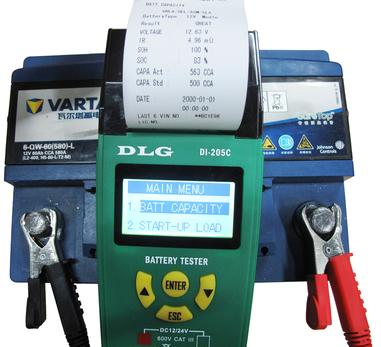

English Interface and Print-out Reading

Battery Tester

-DI-205C with Printer & Ah input

-DI-215A with Ah input Quick Test

-DI-215C with Printer

-DI-216 12V LCD

-DI-217 12V plus LED

Deep-Cycle Battery Tester

​-DI-225 5Ah-80Ah

​-DI-226 40Ah-200Ah

Lead Acid Battery Tester

-​DI- 226A 3 in 1

Brake Fluid Tester

-DI-230 LED Indicator

-DI-230B  LCD Indicator

-DI-230F Boiling Point Tester

Electrical Circuit Tester

-DI-150 Cordless Circuit Tester

-DI-222 Automotive Tester

-DI-223 Multi-function 4 in 1

-DI-250 Short & Open Finder

AC Manifold and Leakage Detector

-DI-517 Manifold Pressure Tester

​-DI-575 Leak Detector

​Digital Tire Inflator With Gauge

-DI-401 Tire Pressure and Tread


DI-215A

FEATURE

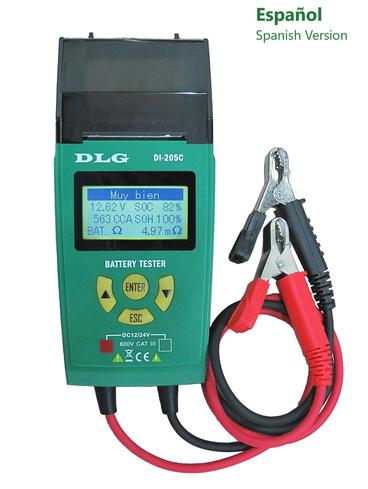

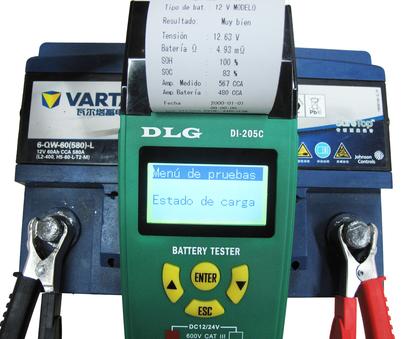

Spanish Interface and Print-out Reading

(12V/24V)

DI-205C

Español

SPECIFICATION

FEATURE
