FEATURE

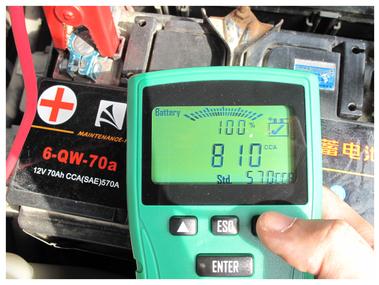

CCA / Internal Resistance / Voltage / Battery Condition
CABLE LENGTH 26 INCH (700 mm)

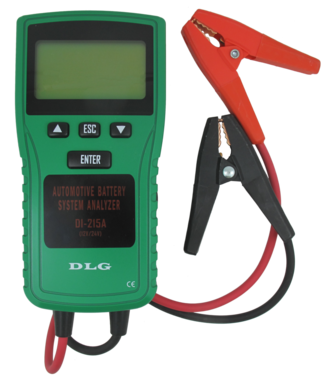

Automotive Battery Analyzer (12V)
Keep the Power Flowing
Keep the Vehicle Running

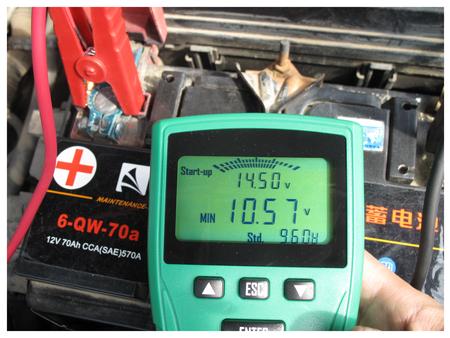

Engine Activation Test
DI-215
SPECIFICATION
- Rich parameters measured and displayed for battery diagnose.
- Easily read out conclusion of battery condition good/OK/ pay attention/ replace as suggestion.
- Overload protection keeps operator always safe.
- Loose lead detection, reverse polarity protection, unit conversion CCA/ IEC/ EN/ DIN.

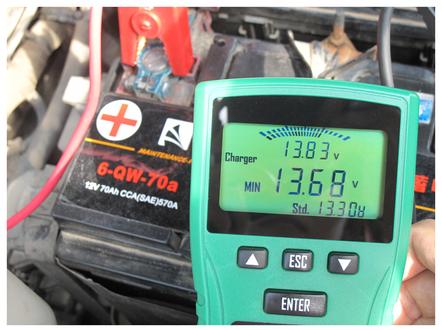

Charging System Test
- CCA Range 100-1700
- IEC Range 100-1000
- EN Range 100-1700
- DIN Range 100-1000
- JIS Range Reference table in manual
- Displays Battery Internal Resistance Display ohms
- Displays Battery Voltage Display volts
- Displays Battery Condition good/OK/pay attention/replace
- Test 12V Battery
- Engine Activation Test
- Charging System Test
- Maximum Load Test
- Battery Recharge Indicator
- Reverse Polarity Protection
- Detects and Displays Bad Cell
- Loose Lead Detection
- Internal Unit Conversion EN, EIC, DIN
- Overload Protection of Input Voltage
- Dimension 7*3.5*1.3 inch (180*90*32mm)
- Weight 400g

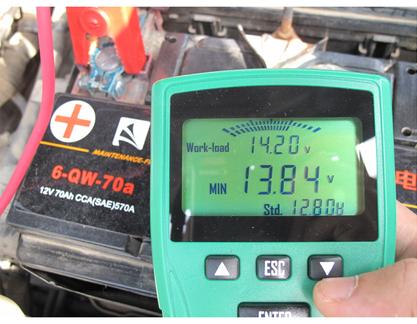

Maximum Load Test
4 IN 1
