DI-120A

SPECIFICATION

Keep the Power Flowing

                       Keep the Vehicle Running

USB CONNECTION FOR DATA DOWNLOADING

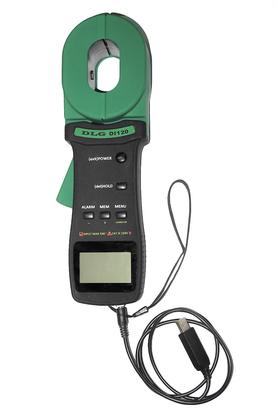

Clamp-on Ground Resistance And Leakage Current Tester With USB

  • Earth Resistance                      0.01Ω-1000Ω
  • Min. Resolution                        0.001Ω
  • Configurable Alarm Value of Resistance    0-199Ω
  • Memory                                   99 sets
  • USB  Interface
  • Conductor Size                         Φ2.2*1.3 inch (Φ55*32mm)
  • LCD Size                                  1.1*1.8 inch (28*46mm)
  • Dimension                                11.2*3.5*2.4 inch(285*90*60mm)
  • Weight                                    1250g

FEATURE

  • 55*32mm jaw size for larger ground rods
  • Autoranging ground resistance measurements from 0.01Ohm to 1000Ohm with 0.001Ohm resolution
  • AC leakage current measurement from 0.05mA to 30A with 0.05mA resolution
  • Configurable alarm value in resistance to support your measurement
  • Ergonomic mold, full rubber coating for slip proof

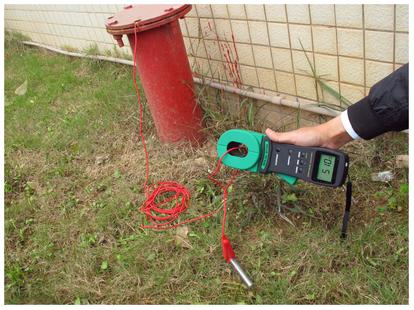

  • Simplifies ground resistance measurements on multiple point ground systems
  • Verification resistor confirm accuracy of meter
  • Datalogging with 99 data points

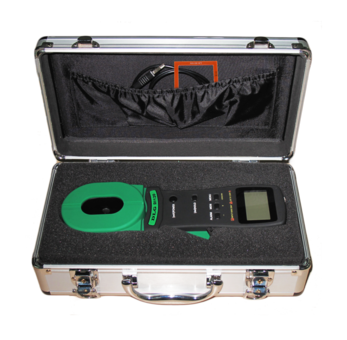

  • Complete with heavy duty case and verification resistor
